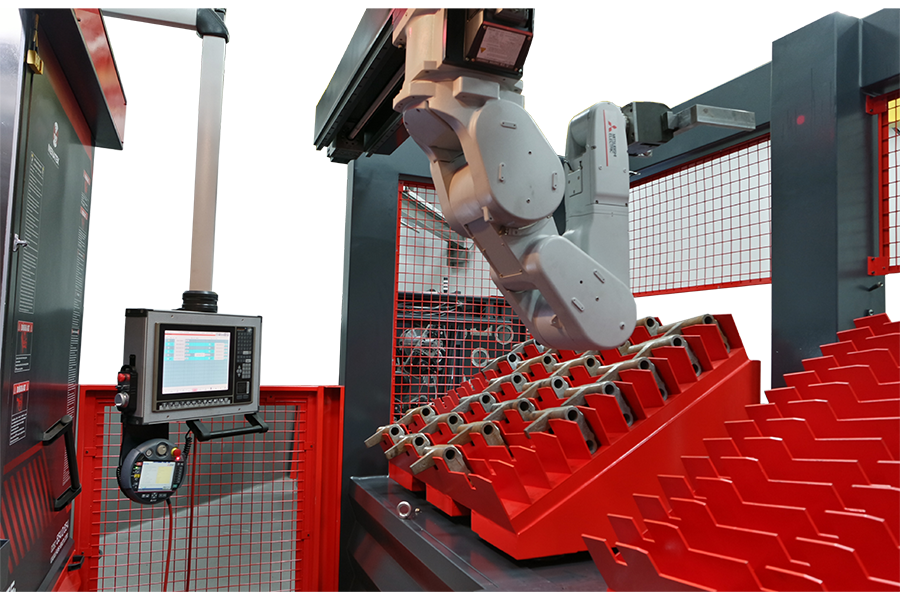

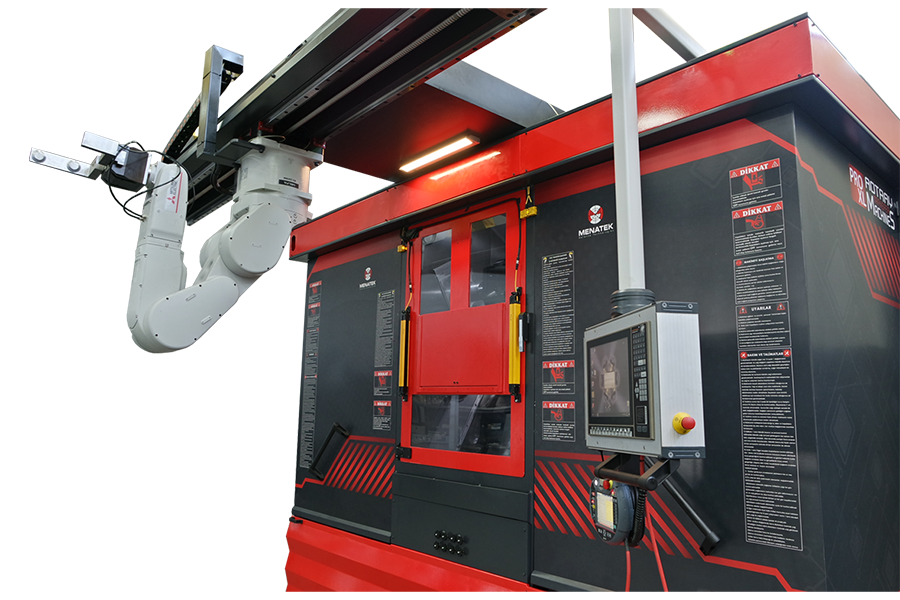

With an advanced (6-axis) robotic arm for automatic feeding, our system significantly
enhances cost efficiency. With a production cycle time ranging from 50 to 90 seconds
per piece, it operates across six stations and consists of eleven units. Featuring twenty-nine
servo axis, our machinery utilizes material cast or forged alloy steel, including 4140, 4340,
and various others.
The workpieces are located and clamped in fixtures that are placed in a circular path. During one cycle,
consecutive machining operations are performed simultaneously. As the indexing table turns, the subsequent
machining operation is repeated on the workpiece which was just machined by the previous station.
TST combines automated part feed with simultaneous operations, enabling rapid production of parts.
Rigid Body & High Accuracy Servo Motors
In TST spindles are positioned appropriately to perform processes on different surfaces
of the workpiece. All operations of a workpiece are performed simultaneously with different
spindles at different stations in TST. Indexing enables TST to have spindles which are placed
on three sides of each station having different functions. Machine tools stop during loading
and unloading but it’s carried out at one station in TST while other machining processes
continue at the other stations.

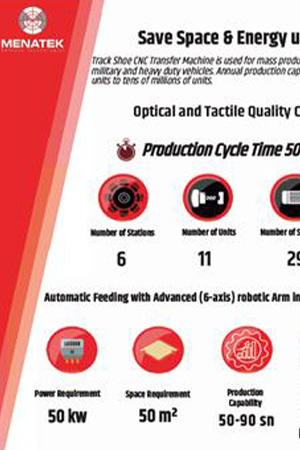

Save Space & Energy

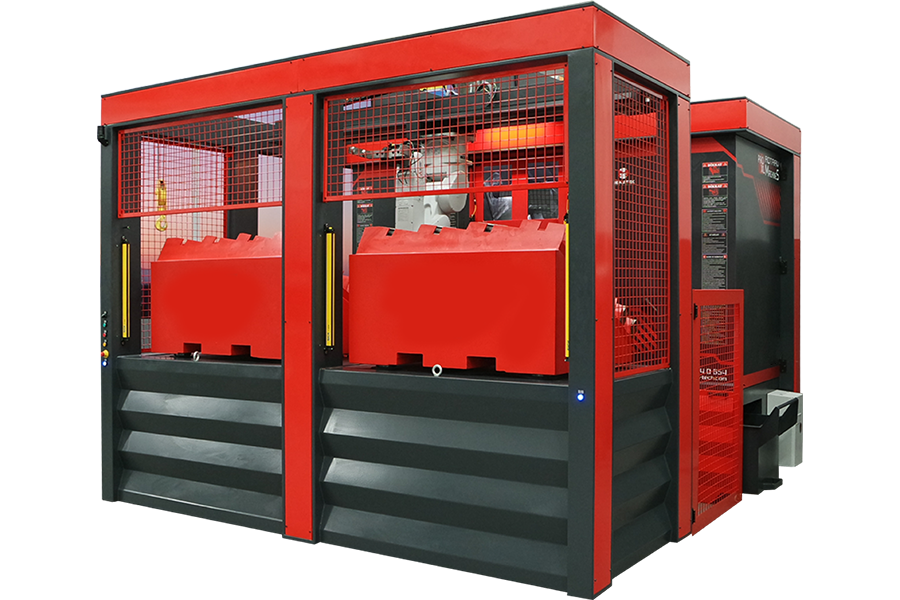

Track Shoe CNC Transfer Machine is used for mass production of the track shoes belong
to military and heavy-duty vehicles. Annual production capacity ranges from
300.000 to 500.000 units to tens of millions of units.
